KG

Feature
1. Safety combustion
　 By air equal division for combustion, stable combustion is possible.
2. Safety
　It is no danger of backfire by outside composite gas burner and as well as
　importance security parts of SHUT OFF VALVE and so on use product that is
　authorized by FM, UL, AGA and so on, fuel supply system or automatic
　control device etc. is manufactured according to standard of gas safety
　administration law.
3. combustion Performance
　Because can choose ventilator internal type and external type , display
　combustion Performance under high furnace pressure and high fever load.

4. Wide use
　Meet in various furnace pressure and sticking condition and it is suitable
　structure to topfiring while can adapt in various youth equipment and so
　on by various boilers, heat cooking braziers, heating stable spread of a
　fire is possible to manufacture gas, natural gas, LPG, digestion gas lamp
　all sorts gas.
Specification
KGL
KGH
KGS 		Consumption Turn down ratio Control method Motor(kw)
KGL KGH
KG-3 30 1:3 ON-OFF
or
Hi-Low		 0.75 0.75
KG-5 50 1:5 0.75 1.5
KG-8 80 1:6 비례 1.5 2.2
KG-10 100 1:6 1.5 2.2
KG-16 120 1:7 2.2 3.7
KG-25 250 1:7 5.5 5.5

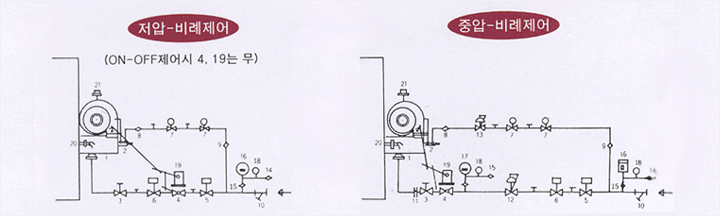

P&I.D

1  ER BODY 7  SOLENOID VALVE 13  PILOT GOVERNOR 19  CONTROL MOTOR
2  PILOT BURNER 8  PILOT STOP VALVE 14  TEST COCK 20  FLAME EYE
3  STOP VALVE 9  PILOT MAIN VALVE 15  GAUGE COCK 21  WIND PRESSURE S/W
4  GAS CONTROL VALVE 10  STRAINER 16  GAS PRESSURE,S/W(LOW)
5  NO.1 SHUT OFF VALVE 11  FLAME ARRESTER 17  GAS PRESSURE,S/W(HIGH)
6  NO.2 SHUT OFF VALVE 12  MAIN GOVERNOR 18  GAS PRESSURE GAUGE
