RBS

Feature
1. Wide turn-down ratio
　Having a wide turn down ratio ranging 1:6 to 1:10 the HEUNGKUK RBS
　burner always offers continuous and linear control of fuel without
　interruption of on-off operation even at low boiler load.
2. Compact design
　Owing to high speed revolution and high efficiency of the primary air fan,
　the burner is designed smaller in dimension and less in electric
　consumption.
3. Fine atomization
　High speed revolution and high primary air pressure assures stabl
　combustion through fine atomization and proper mixture of fuel mist and
　air. No raising pressure of the primary air is requried for furnace pressure
　up to 150mmAq.
4. Low grade fuel oil applicable
　It is possible to use low grade fuel oil with high viscosity.
5. Small combustion chamber
　Highly loaded combustion gives advantage of designing combustion
　chamber smaller
6. Low air ratio
　Good mixture of fuel oil with air is assured by baffle plate.
Specification
Burner Boiler
evaporation
equivalent 		Oil flow
control nethod		 Solenoid valve
(ITT G.C)		 Oil
preheater capacity		 Oil pump Belt size
RBS-1 1,700kg/h VC-2 KIOAB 174 3kw TOP-204H(15A) 19 X 554
RBS-2.5 3,860kg/h VC-2 KIOAB 282 5kw TOP-208H(15A) 26 X 755
RBS-4 6,180kg/h VC-2 KIOAB 282 7kw TOP-208H(15A) 26 X 755
RBS-6.5 10,000kg/h VC-2 KIOAB 444 9~12kw TOP-216H(20A) 40 X 830
RBS-19 11,600kg/h VC-3A KIOAB 444 15kw TOP-216H(20A) 40 X 830
Capacities of RB burner
Burner type RBS-1 RBS-2.5 RBS-4 RBS-6.5 RBS-1
　Evaporation equivalent KG/H 1,700 3,860 6,180 10,000 11,600
　Heating capacity 1,000Kcal/h 1,078 2,450 3,920 6,468 7,500
　Max. burner rating KG/H 120 250 400 650 1,000
　Min. burner rating KG/H 30 50 80 110 160
　TURN DOWN RATIO   1:4 1:5 1:5 1:6 1:6
　Pressure differential
　between windbox &
　combustion chamber		 mmAq 80~130 90~150 110~170 160~210 160~210
　BURNER.MOTOR kw 0.75 1.5 2.2 3.7 3.7
　Gear pump motor kw 0.4 0.4 0.4 0.75 0.75

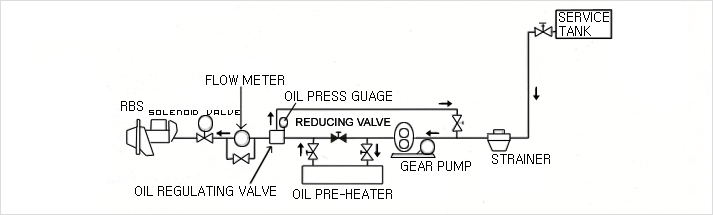

FLOW CHART
